| Metadata |
| Part No. |
48001-1001 |
48001-1101 |
| Product name |

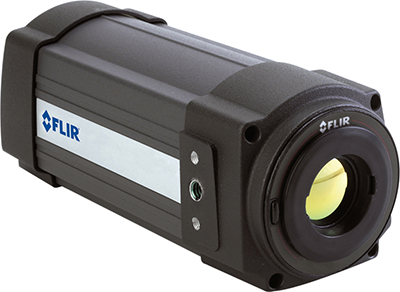

FLIR A325sc |
FLIR A315 |
| Revision |
30642 |
30642 |
| Last modified |
2015-11-23 15:29 |
2015-11-23 15:29 |
| Imaging and optical data |
| IR resolution |
320 × 240 pixels |
320 × 240 pixels |
| Thermal sensitivity/NETD |
< 0.05°C @ +30°C (+86°F) / 50 mK |
< 0.05°C @ +30°C (+86°F) / 50 mK |
| Field of view (FOV) |
25° × 18.8° |
25° × 18.8° |
| Minimum focus distance |
0.4 m (1.31 ft.) |
0.4 m (1.31 ft.) |
| Focal length |
18 mm (0.7 in.) |
18 mm (0.7 in.) |
| Spatial resolution (IFOV) |
1.36 mrad |
1.36 mrad |
| Lens identification |
Automatic |
Automatic |
| F-number |
1.3 |
1.3 |
| Image frequency |
60 Hz |
60 Hz |
| Focus |
Automatic or manual (built in motor) |
Automatic or manual (built in motor) |
| Detector data |
| Detector type |
Focal plane array (FPA), uncooled microbolometer |
Focal plane array (FPA), uncooled microbolometer |
| Spectral range |
7.5–13 µm |
7.5–13 µm |
| Detector pitch |
25 µm |
25 µm |
| Detector time constant |
Typical 12 ms |
Typical 12 ms |
| Measurement |
| Object temperature range |
–20 to +120°C (–4 to +248°F) |
–20 to +120°C (–4 to +248°F) |
| 0 to +350°C (+32 to +662°F) |
0 to +350°C (+32 to +662°F) |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading |
±2°C (±3.6°F) or ±2% of reading |
| Measurement analysis |
| Atmospheric transmission correction |
Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics transmission correction |
Automatic, based on signals from internal sensors |
Automatic, based on signals from internal sensors |
| Emissivity correction |
Variable from 0.01 to 1.0 |
Variable from 0.01 to 1.0 |
| Reflected apparent temperature correction |
Automatic, based on input of reflected temperature |
Automatic, based on input of reflected temperature |
| External optics/windows correction |
Automatic, based on input of optics/window transmission and temperature |
Automatic, based on input of optics/window transmission and temperature |
| Measurement corrections |
Global object parameters |
Global object parameters |
| Ethernet |
| Ethernet |
Control and image |
Control and image |
| Ethernet, type |
Gigabit Ethernet |
Gigabit Ethernet |
| Ethernet, standard |
IEEE 802.3 |
IEEE 802.3 |
| Ethernet, connector type |
RJ-45 |
RJ-45 |
| Ethernet, communication |
TCP/IP socket-based FLIR proprietary and GenICam protocol |
TCP/IP socket-based FLIR proprietary and GenICam protocol |
| Ethernet, image streaming |
16-bit 320 × 240 pixels @ 60 Hz |
16-bit 320 × 240 pixels @ 60 Hz |
| Signal linear |
Signal linear |
| Temperature linear |
Temperature linear |
| Radiometric |
Radiometric |
| GigE Vision and GenICam compatible |
GigE Vision and GenICam compatible |
| Ethernet, protocols |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Digital input/output |
| Digital input, purpose |
Image tag (start, stop, general), Image flow control, (stream on/off), Input ext. device (programmatically read) |
Image tag (start, stop, general), Image flow control, (stream on/off), Input ext. device (programmatically read) |
| Digital input |
2 opto-isolated, 0–1.5 V = low, 3–25 V = high |
2 opto-isolated, 0–1.5 V = low, 3–25 V = high |
| Digital output, purpose |
Output to ext. device (programmatically set) |
Output to ext. device (programmatically set) |
| Digital output |
2 opto-isolated, ON = supply (max. 100 mA), OFF = open |
2 opto-isolated, ON = supply (max. 100 mA), OFF = open |
| Digital I/O, isolation voltage |
500 VRMS |
500 VRMS |
| Digital I/O, supply voltage |
6–24 VDC, max. 200 mA |
6–24 VDC, max. 200 mA |
| Digital I/O, connector type |
6-pole jackable screw terminal |
6-pole jackable screw terminal |
| Power system |
|
|
| External power operation |
12/24 VDC, 24 W absolute max. |
12/24 VDC, 24 W absolute max. |
| External power, connector type |
2-pole jackable screw terminal |
2-pole jackable screw terminal |
| Voltage |
Allowed range 10–30 VDC |
Allowed range 10–30 VDC |
| Environmental data |
| Operating temperature range |
–15°C to +50°C (+5°F to +122°F) |
–15°C to +50°C (+5°F to +122°F) |
| Storage temperature range |
–40°C to +70°C (–40°F to +158°F) |
–40°C to +70°C (–40°F to +158°F) |
| Humidity (operating and storage) |
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) |
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) |
| EMC |
EN 61000-6-2:2001 (Immunity) |
EN 61000-6-2:2001 (Immunity) |
| EN 61000-6-3:2001 (Emission) |
EN 61000-6-3:2001 (Emission) |
| FCC 47 CFR Part 15 Class B (Emission) |
FCC 47 CFR Part 15 Class B (Emission) |
| Encapsulation |
IP 40 (IEC 60529) |
IP 40 (IEC 60529) |
| Shock |
25 g (IEC 60068-2-27) |
25 g (IEC 60068-2-27) |
| Vibration |
2 g (IEC 60068-2-6) |
2 g (IEC 60068-2-6) |
| Physical data |
| Weight |
0.7 kg (1.54 lb.) |
0.7 kg (1.54 lb.) |
| Camera size (L × W × H) |
170 × 70 × 70 mm (6.7 × 2.8 × 2.8 in.) |
170 × 70 × 70 mm (6.7 × 2.8 × 2.8 in.) |
| Tripod mounting |
UNC ¼"-20 (on three sides) |
UNC ¼"-20 (on three sides) |
| Base mounting |
2 × M4 thread mounting holes (on three sides) |
2 × M4 thread mounting holes (on three sides) |
| Housing material |
Aluminum |
Aluminum |
| Shipping information |
| Packaging, type |
Cardboard box |
Cardboard box |
| List of contents |
Infrared camera with lens |
Infrared camera with lens |
| Ethernet cable |
Ethernet cable |
| FLIR ResearchIR Max 4 (licence only) |
Mains cable |
| Hard transport case |
Power cable, pig-tailed |
| Mains cable |
Power supply |
| Power cable, pig-tailed |
Printed documentation |
| Power supply |
Utility CD-ROM |
| Printed documentation |
|
| Packaging, weight |
5.0 kg (11.0 lb.) |
|
| Packaging, size |
495 × 370 × 192 mm (19.5 × 14.6 × 7.6 in.) |
495 × 370 × 192 mm (19.5 × 14.6 × 7.6 in.) |
| EAN-13 |
7332558004203 |
7332558003374 |
| UPC-12 |
845188004231 |
845188003128 |
| Country of origin |
Sweden |
Sweden |
